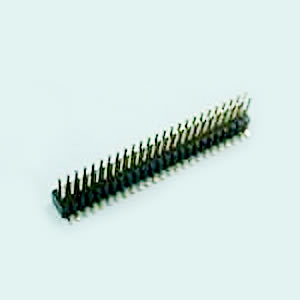

P1035A Dual Row 06 to 100 Contacts SMT Type

• 0.05"*0.05"(1.27*1.27mm) Pin Header
• Dual Row 06 to 100 Contacts SMT Type ,Profile : 2.54mm


Specification:

• Current Rating: 1Amp
• Insulator Resistance: 1000 Megohms min.
• Contact Resistance: 20 Milliohms Max.
• Dielectric Withstanding: AC 500V.
• Operating Temperature: -40℃ ~ +105℃
• Max Processing Temp: 230℃ For 30~60 Seconds (260℃ For 10 Seconds)
• Contact Material: Brass
• Insulator Material: Polyester,UL 94V-0
• Standard : Nylon-6T
• Contact Plated: Full Gold, Full Tin, Selective Plated
