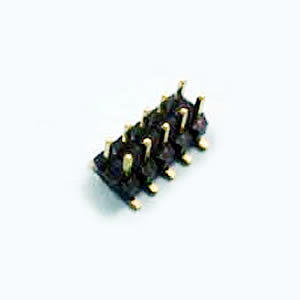

P1021 Dual Row 04 to 80 Contacts SMT Type

• P1021 Dual Row 04 to 80 Contacts SMT Type
• 0.079"x0.079"(2.0x2.0mm) Pin Header
• Dual Row 04 to 80 Contacts SMT Type ,Profile:1.5mm


Specification:

• Current Rating: 1.0 Amp
• Insulator Resistance: 1000 M ohm min.
• Contact Resistance: 20m ohm Max.
• Dielectric Withstanding: 500 V AC/Min.
• Operating Temperature: -40℃ ~ +105℃
• Max Processing Temp.: 230℃ For 30~60 Seconds (260℃ For 10 Seconds)
• Contact Material: Brass
• Insulator Material: Polyester, UL 94V-0
• Standard :Nylon-6T
• Contact Plated: Full Gold, Full Tin,Selective Plated
