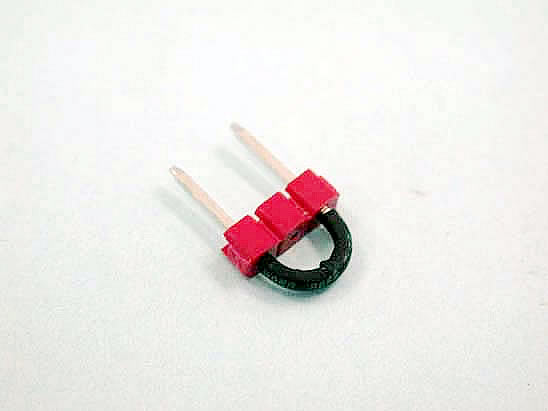

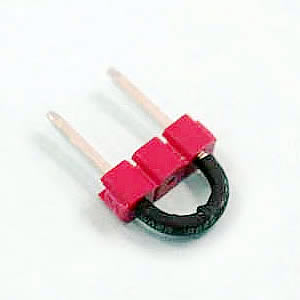

P101 Single Row 02 to 40 Contacts U Style Type

• 0.1”(2.54mm) Pin Header
• Single Row 02 to 40 Contacts
• U Style Type Profile: 2.54mm


Specification:

• Current Rating : 3 Amp
• Insulator Resistance : 1000 Megohms min.
• Contact Resistance : 20 Milliohms Max.
• Dielectric Withstanding : AC 500V
• Operating Temperature : -40C ~ +105C
• Contact Material : Brass
• Insulator Material : Polyester, UL 94V-0
• Standard : P.B.T
• Contact Plated : Full Gold, Full Tin, Selective Plated.
