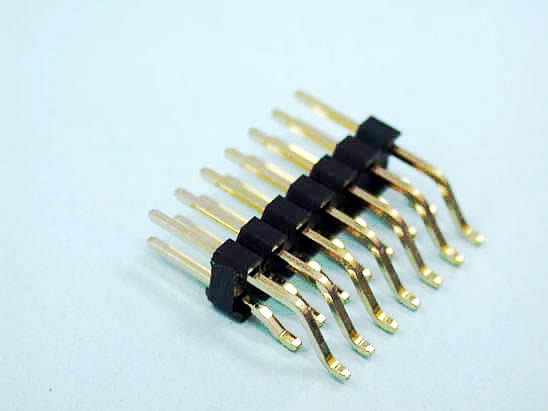

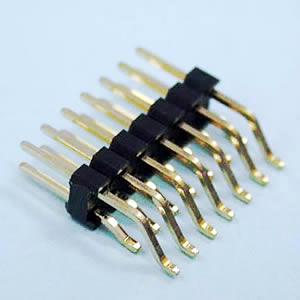

P101 Dual Row 04 to 80 Contacts Horizonal SMT Type

• 0.1" (2.54mm) Pin Header
• Dual Row 04 to 80 Contacts Horizonal SMT Type


Specification:

• Current Rating: 3.0 Amp
• Insulator Resistance: 1000 Megohms min.
• Contact Resistance: 20 Milliohms Max
• Dielectric Withstanding: AC 500V
• Operating Temperature: -40℃ ~ +105℃
• Max Processing Temp.: 230℃ For 30~60 Seconds (260℃ For 10 Seconds)
• Contact Material: Brass or Bronze
• Insulator Material: Polyester, UL 94V-0
• Standard :Nylon-6T

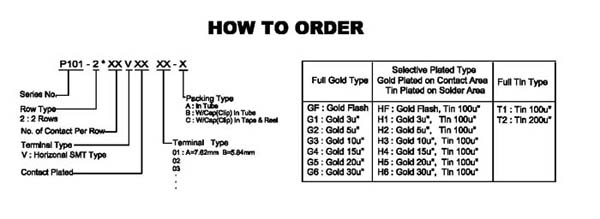

• Contact Plated: Full Gold, Full Tin,Selective Plated
