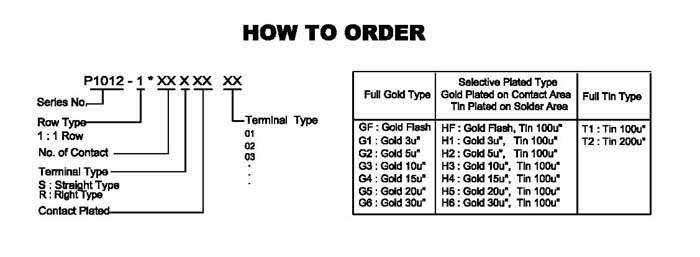

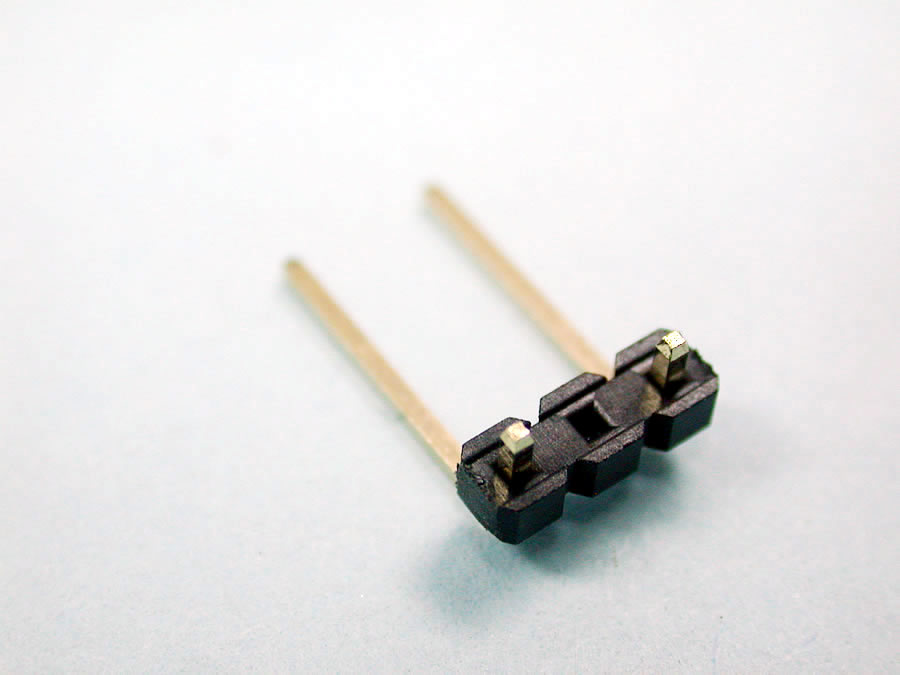

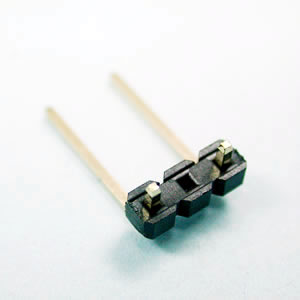

Products Pin Header 2.54mm P1012 Single Row 02 to 32 Contacts Straight Type 0.1" (2.54mm) Pin Header Single Row 02 to 32 Contacts Straight Type ,Profile:1.7mm Specification: Current Rating: 3.0 Amp Insulator Resistance: 1000 Megohms min. Contact Resistance: 20 Milliohms Max. Dielectric Withstanding: AC 500V Operating Temperature: -40℃ ~ +105℃ Max Processing Temp.: 230℃ For 30~60 Seconds (260℃ For 10 Seconds) Contact Material: Brass or Bronze Insulator Material: Polyester, UL 94V-0 Standard : Nylon-6T Contact Plated: Full Gold, Full Tin,Selective Plated P1012-1xXXXXX-XX Please write down your comment on this product, and click Add to Inquiry List for inquiry Add to Inquiry List Review Inquiry List Back
