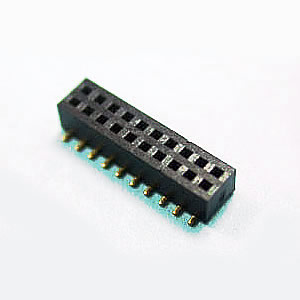

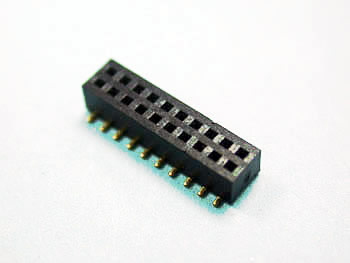

F221 Dual Row 06 to 100 Contacts SMT Type

Specification:

• Current Rating : 1Amp
• Insulator Resistance : 1000 Megohms min.
• Contact Resistance : 20 Milliohms Max.
• Dielectric Withstanding : AC 500V
• Operating Temperature : -40°C ~ +105°C
• Max Processing Temp : 230°C For 30~60 Seconds (260°C For 10 Seconds)
• Contact Material : Phosphor Bronze
• Insulator Material : Polyester, UL 94V-0
• Standard : L.C.P
• Contact Plated : Full Gold, Full Tin
• Standard : Gold Flash all Over Nlickel

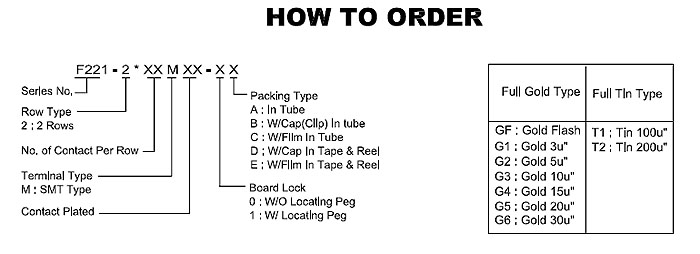

• Series Number : F221
• Row Type : 2 Rows
• No. of Contact Per Row : 6.8.10.12.14.16.18.20.22.24.26.28.30.32.34.36.38.40.42.44.46.48.50.52.54.56.58.60.62.64.66.68.70.72.74.76.78.80.82.84.86.88.90.92.94.96.98.100
• Terminal Type : SMT Type
• Contact Plated :
  GF : Gold Flash G1: Gold 3u"
  G2 : Gold 5u"
  G3 : Gold 10u"
  G4 : Gold 15u"
  G5 : Gold 20u"
  G6 : Gold 30u"
  T1 : Tin 100u"
  T2 : Tin 200u"
• Board Lock : W/O Locating Peg, W/ Locating Peg
• Packing Type : In Tube
  W/Cap (clip) In Tube
  W/Film in Tube
  W/Cap in Tape & Reel
  W/Film in Tape & Reel
