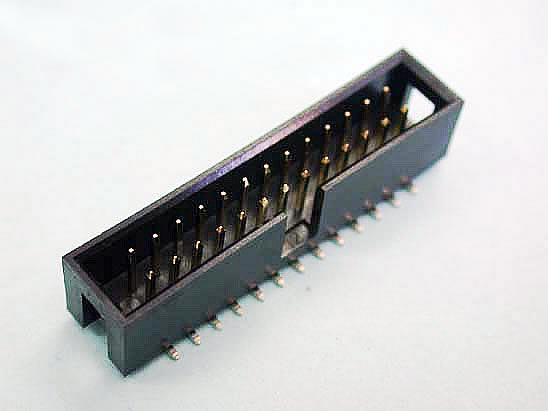

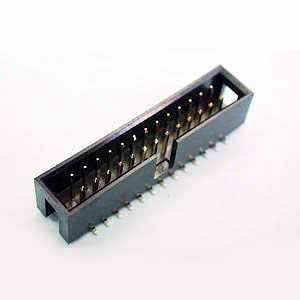

• 0.10"(2.54mm) Box Header
    • Dual Row 08 to 64 Contacts
    • SMT Type Profile : 8.8mm


    Specification:

    • Current Rating: 3 Amp
    • Insulator Resistance: 1000 M ohm min.
    • Contact Resistance: 20m ohm Max.
    • Dielectric Withstanding: AC 500V
    • Operating Temperature: -40℃ ~ +105℃
    • Max Processing Temp : 230℃ For 30~60 Seconds (260℃ For 10 Seconds)
    • Contact Material: Brass
    • Insulator Material: Polyester, UL 94V-0
    • Standard : NY-6T
    • Contact Plated: Full Gold, Full Tin,Selective Plated
    • Standard: Gold Flash all Over Nickel

    B302-XXMXX-X
