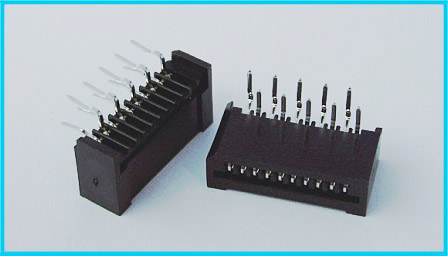

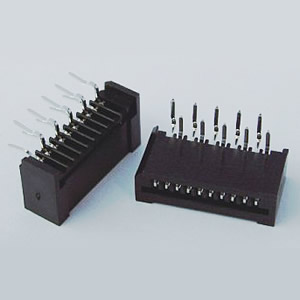

• 0.004"(1.0mm)FPC/FFC Pitch Connector
    • P/N: TFP-R6XXNR-DT1-0XA
    • NON ZIF RIGHT ANGLE TYPE DAUL CONTACT


    Specifications:

    • Current Rating: 0.5 Amp
    • Voltage Rating: 100V AC/DC
    • Contact resistance: 30m Ohm Max
    • Insulator resistance: 1000M ohm min.
    • Withstanding Voltage: 250V AC/Minute
    • Operating Temperature Range: -40℃+85℃
    • Max Processing Temp: 260℃ for 5 seconds
    • Insulator Material: Polyester, UL 94V-0
    • Contact Material: Phosphor Bronze
    • Contact Plated: Tin Plated

    TFP-R6
