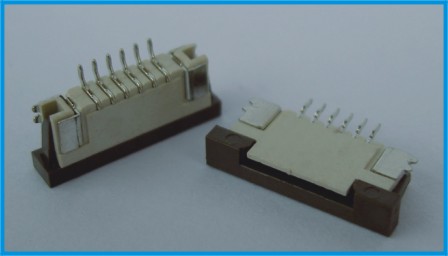

TFP ZIF HORIZONTAL SMT TYPE

0.004"(1.0mm)FPC/FFC Pitch Connector

ZIF HORIZONTAL SMT TYPE     BODY HEIGHT 2.0mm

Specifications:
Current Rating:                                    0.5 Amp
Voltage Rating:                                    100V AC/DC
Contact resistance:                               30m Ohm Max
Insulator resistance:                              1000M ohm min.
Withstanding Voltage:                         250V AC/Minute
Operating Temperature Range:            -20℃+85℃
Max Processing Temp:                        260℃ for 5 seconds
Insulator Material:                               Polyester, UL 94V-0
Contact  Material:                               Phosphor Bronze
Contact Plated:                                   Tin Plated
