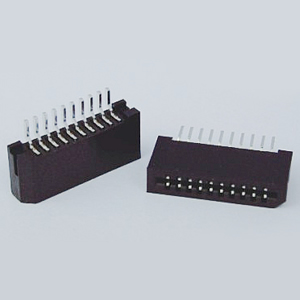

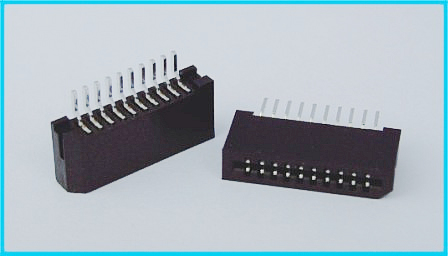

TFP-C7 P1.25mm NON-ZIF HORIZONTAL SMT TYPE BODY HEIGHT 3.0mm

• 1.25mm Pitch FPC/FFC Connector
• NON-ZIF HORIZONTAL SMT TYPE Daul Contact BODY HEIGHT 2.5mm
• P/N: TFP-C7XXNH-DT1-OCX


Specifications:

• Current Rating: 0.5 Amp
• Voltage Rating: 200V AC/DC
• Contact resistance: 20m Ohm Max
• Insulator resistance: 800M ohm min.
• Withstanding Voltage: 500V AC/Minute
• Operating Temperature Range: -20℃+85℃
• Max Processing Temp: 260℃ for 5 seconds
• Insulator Material: PPS, UL 94V-0
• Contact Material: Phosphor Bronze
• Contact Plated: Tin Plated
