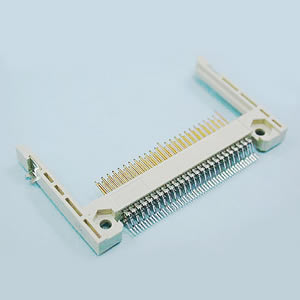

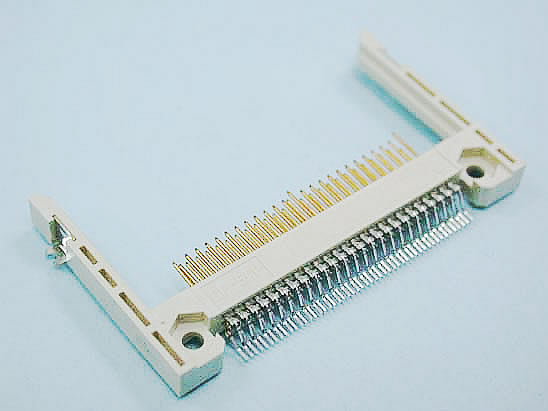

871-504251-XX SMT TYPE HDIGHT 4.25mm

• 0.05" (1.27mm) Compact Flash Card
• SMT TYPE HDIGHT 4.25mm


Specifications:

• Current Rating: 0.5 Amp
• Voltage Rating: 100V AC/DC
• Contact resistance: 40m Ohm Max
• Insulator resistance: 1,000M ohm min.
• Withstanding Voltage: 500V AC/Minute
• Operating Temperature Range: -20℃+60℃


Material And Finish:

• Insulator: Polyester(UL 94V-0)
• Standard : LCP
• Contact: Copper Alloy
• Contact Plated: Gold plated(standard)
