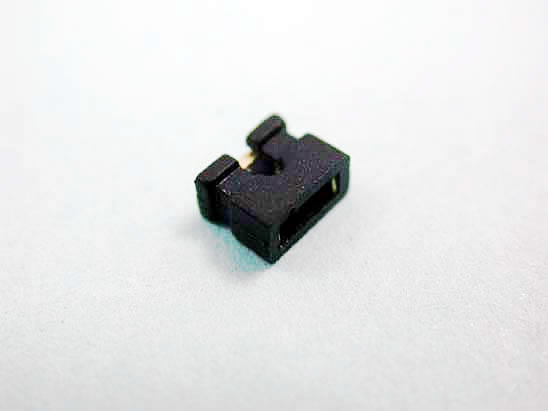

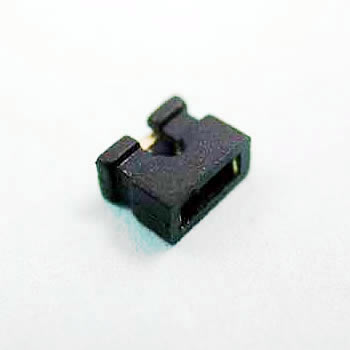

• MINI JUMPER SERIES
    • 2.0mm PITCH OPEN&CLOSE TYPE


    Specifications:

    • Current Rating: 3.0 Amp
    • Voltage Rating: 150V AC/DC
    • Contact resistance: 20m Ohm Max
    • Insulator resistance: 1,000M ohm min.
    • Withstanding Voltage: 500V AC/Minute
    • Operating Temperature Range: -40℃+105℃
    • Material And FinishInsulator: Polyester(UL 94V-0)
    • Standard: PBT+30% Glass Fiber
    • Contact: Brass or Phosphor Bronze
    • Contact Plated: Full Gold or Full Tin

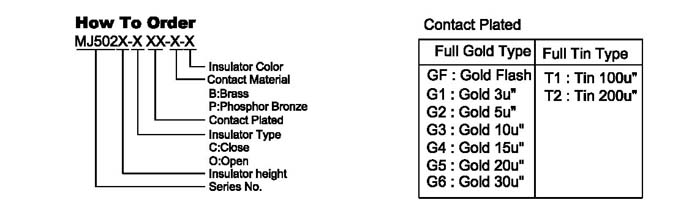

    MJ502X-XXX-X-X
