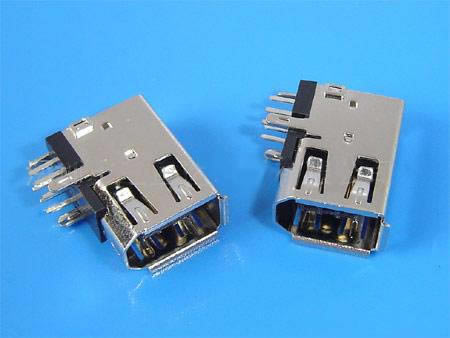

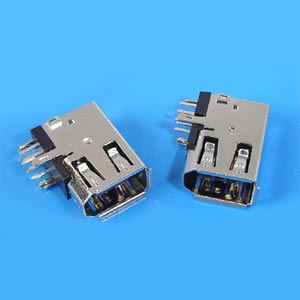

1394S 6 CONTACTS FEMALE SIDE R/A TYPE

• 6 CONTACTS FEMALE SIDE R/A TYPE
• IEEE 1394 SERIES


Specifications:

• Current Rating: 1.0 Amp
• Voltage Rating: 150V AC/DC
• Contact resistance: 30m Ohm Max
• Insulator resistance: 100M ohm min.
• Withstanding Voltage: 500V AC/Minute
• Operating Temperature Range: -40℃+85℃


Material And Finish:

• Insulator: Polyester(UL 94V-0)
• Standard : PBT
• Contact: Copper Alloy
• Contact Plated: Selective Gold plated(standard)
• Shell: Copper Alloy With Nickel Plated
