• MINI USB SERIES
    • 4 CONTACTS FEMALE SMD TYPE


    Specifications:

    • Current Rating: 1.5 Amp
    • Voltage Rating: 250V AC/DC
    • Contact resistance: 20m Ohm Max
    • Insulator resistance: 1000M ohm min.
    • Withstanding Voltage: 500V AC/Minute
    • Operating Temperature Range: -20℃+85℃
    • Max Processing Temp: 260℃ for 5 seconds
    • Insulator Material: Thermoplastic Nylon 6T(UL 94V-0)
    • Contact Material: Phosphor Bronze
    • Contact Plated: Selective Gold plated(standard)
    • Shell: Copper Alloy With Nickel Plated

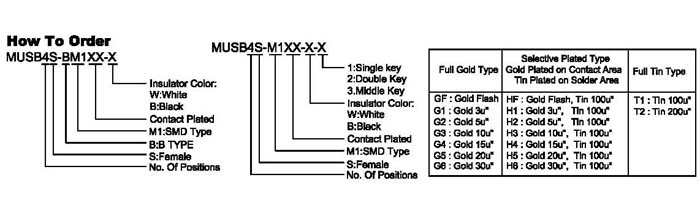

    MUSB4S-BM1XX-X
