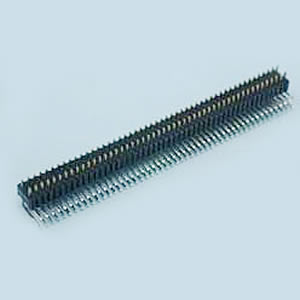

• 0.05" X 0.1"(1.27 X 2.54mm) Pin Header
    • Dual Row 06 to 100 Contacts Straight And Right Angle Type ,Profile:2.54mm


    Specification:

    • Current Rating: 1.0 Amp
    • Insulator Resistance: 1000 Megohm min.
    • Contact Resistance: 20milliohm Max.
    • Dielectric Withstanding: AC 500 V
    • Operating Temperature: -40℃ ~ +105℃
    • Max Processing Temp.: 230℃ For 30~60 Seconds (260℃ For 10 Seconds)
    • Contact Material: Brass
    • Insulator Material: Polyester, UL 94V-0
    • Standard :Nylon-6T
    • Contact Plated: Full Gold, Full Tin,Selective Plated

    P1039-2xXXXXX-XX

Order / Inquiry Information

Please select Items below and click See Catelog for Inquiry.
Series No. P1039
Row Type 2: 2 Rows
No. of Contact Per Row
Terminal Type
Contact Plated
Terminal Type
