  • P104 Dual Row 04 to 80 Contacts Straight And Right Angle Type

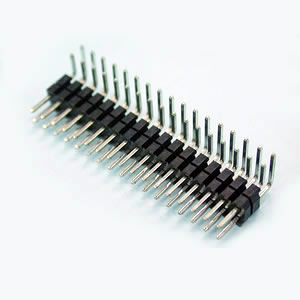

    P104 Dual Row 04 to 80 Contacts Straight And Right Angle Type

    • 0.079" (2.0mm) Pin Header
    • Dual Row 04 to 80 Contacts Straight And Right Angle Type


    Specification:

    • Current Rating: 1Amp
    • Insulator Resistance: 5000 Megohms min
    • Contact Resistance: 20 Milliohms Max.
    • Dielectric Withstanding: AC 500V
    • Operating Temperature: -40℃~+105℃
    • Contact Material: Brass
    • Insulator Material: Polyester, UL 94V-0
    • Standard: Nylon-6T
    • Contact Plated: Full Gold, Full Tin, Selective Plated

    More Specification (PDF)

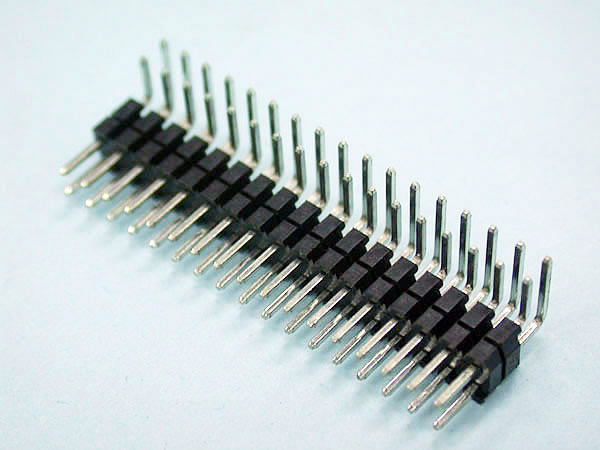

P104 Dual Row 04 to 80 Contacts Straight And Right Angle Type

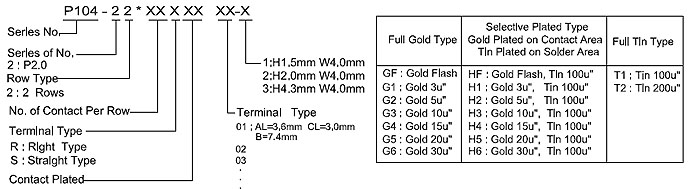

Order / Inquiry Information

Please select Items below and click See Catelog for Inquiry.
Series No. P104
Pin Series Pitch=2.0
Row Type 2 Rows
No. of Cntact Per Row
Terminal Type
Contact Plated
Terminal Type AL=3.6mm B=7.4mm CL=3.0mm
Length
See Catalog
