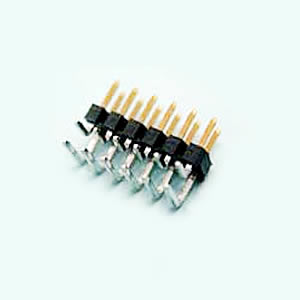

• 0.079"x0.079"(2.0x2.0mm) Pin Header
    • Dual Row 04 to 80 Contacts Straight And Right Angle Type ,Profile:1.5mm


    Specification:

    • Current Rating: 1.0 Amp
    • Insulator Resistance: 1000 M ohm min.
    • Contact Resistance: 20m ohm Max.
    • Dielectric Withstanding: 500 V AC/Min.
    • Operating Temperature: -40℃ ~ +105℃
    • Max Processing Temp.: 230℃ For 30~60 Seconds (260℃ For 10 Seconds)
    • Contact Material: Brass
    • Insulator Material: Polyester, UL 94V-0
    • Standard :Nylon-6T
    • Contact Plated: Full Gold, Full Tin,Selective Plated

    P1021-2xXXXXX-XX

Order / Inquiry Information

Please select Items below and click See Catelog for Inquiry.
Series No. P1021
Row Type 2:2 Rows
No. of Contact Per Row
Terminal Type
Contact Plated
Terminal Type
