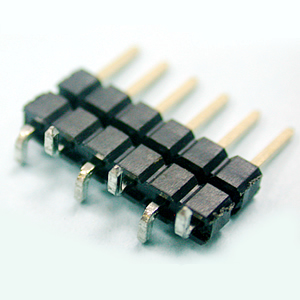

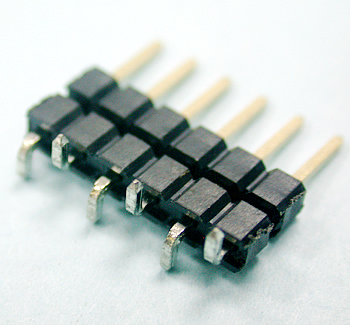

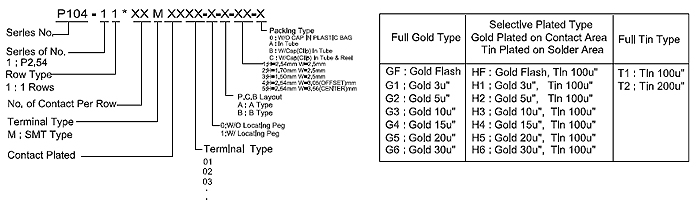

Products Pin Header 2.54mm P104 Single Row 02 to 40 Contacts SMT Type 0.1"X0.1" (2.54mm) Pin Header Single Row 02 to 40 Contacts SMT Type Specification: Current Rating: 3Amp Insulator Resistance: 5000 Megohms min Contact Resistance: 20 Milliohms Max. Dielectric Withstanding: AC 500V Operating Temperature: -40℃~+105℃ Max Processing Temp: 230℃ For 30~60 Seconds (260℃ For 10 Seconds) Contact Material: Brass Insulator Material: Polyester, UL 94V-0 Standard: Nylon-6T Contact Plated: Full Gold, Full Tin, Selective Plated More Specification (PDF) Order / Inquiry Information Please select Items below and click See Catelog for Inquiry. Series No. P104 Series of No. P2.54 Row Type 1 Rows No. of Cntact Per Row 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 Terminal Type SMT Type Contact Plated Gold Flash, Tin 100u" Gold 3u", Tin 100u" Gold 5u", Tin 100u" Gold 10u", Tin 100u" Gold 15u", Tin 100u" Gold 20u", Tin 100u" Gold 30u", Tin 100u" Terminal Type A=2.8mm B=4.0mm Board Lock W/O Locating Peg W/Locating Peg P.B.C Layout A Type B Type Lenght H=2.54mm W=2.5mm H=1.70mm W=2.5mm H=1.50mm W=2.5mm H=2.54mm W=3.05(Offset)mm H=2.54mm W=3.56(Center)mm Packing Type W/O Cap In Plastic Bag In Tube W/Cap (clip) In Tube W/Cap (clip) In Tube & Reel See Catalog Please write down your comment on this product, and click Add to Inquiry List for Inquiry Add to Inquiry List Review Inquiry List Back
