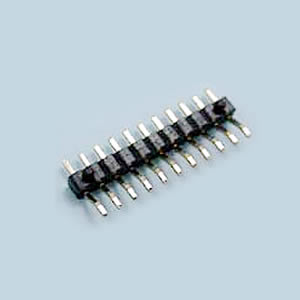

• 0.1" (2.54mm) Pin Header
    • Single Row 02 to 40 Contacts Horizonal SMT Type


    Specification:

    • Current Rating: 3 Amp
    • Insulator Resistance: 1000 Megohms min.
    • Contact Resistance: 20 Milliohms Max.
    • Dielectric Withstanding: 500 V AC/Min.
    • Operating Temperature: -40℃ ~ +105℃
    • Max Processing Temp.: 230℃ For 30~60 Seconds (260℃ For 10 Seconds)
    • Contact Material: Brass
    • Insulator Material: Polyester, UL 94V-0
    • Standard Nylon-6T
    • Contact Plated: Full Gold, Full Tin,Selective Plated

    P101-1xXXVXX-XX

Order / Inquiry Information

Please select Items below and click See Catelog for Inquiry.
Series No. P101
Row Type 1:1 Row
No. of Contact
Terminal Type V: Horinontail SMT Type
Contact Plated
Terminal Type
