• 0.1" (2.54mm) Pin Header
    • Single Row 02 to 40 Contacts SMT Type ,Profile:1.7mm


    Specification:

    • Current Rating: 3.0 Amp
    • Insulator Resistance: 1000 Megohms min.
    • Contact Resistance: 20 Milliohms Max.
    • Dielectric Withstanding: AC 500V
    • Operating Temperature: -40℃ ~ +105℃
    • Max Processing Temp.: 230℃ For 30~60 Seconds (260℃ For 10 Seconds)
    • Contact Material: Brass or Bronze
    • Insulator Material: Polyester, UL 94V-0
    • Standard : Nylon-6T
    • Contact Plated: Full Gold, Full Tin,Selective Plated

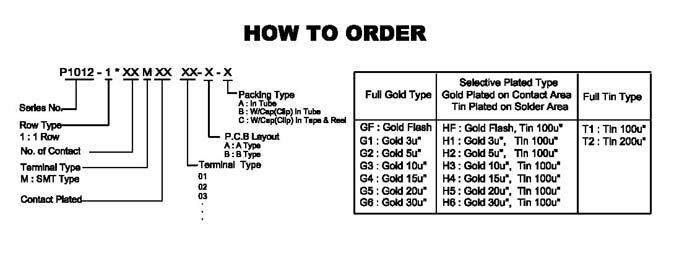

    P1012-1xXXMXX-XX-X-X

Order / Inquiry Information

Please select Items below and click See Catelog for Inquiry.
Series No. P1012
Row Type 1:1 Row
No. of Contact
Terminal Type M: SMT Type
Contact Plated
Terminal Type
P.C.B Layout
Packing Type
