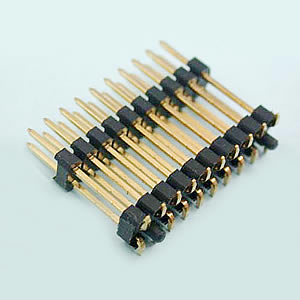

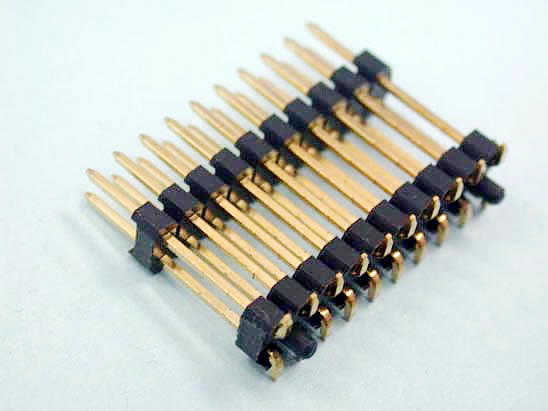

P104 Dual Row 04 to 80 Contacts SMT Type

• 0.1" (2.54mm) Pin Header
• Dual Row 04 to 80 Contacts SMT Type


Specification:

• Current Rating: 3.0 Amp
• Insulator Resistance: 1000 M ohm min.
• Contact Resistance: 20m ohm Max.
• Dielectric Withstanding: 500 V AC/Min.
• Operating Temperature: -40℃ ~ +105℃
• Max Processing Temp: 230℃ For 30~60 Seconds
• 260℃ For 10 Seconds
• Contact Material: Brass or Bronze
• Insulator Material: Polyester, UL 94V-0
• Standard : Nylon-6T
• Contact Plated: Full Gold, Full Tin,Selective Plated
