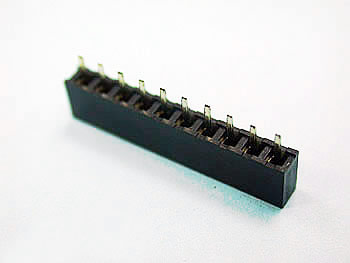

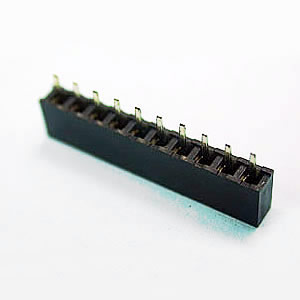

• 0.079"(2.0mm)Female Header
    • Single 02 to 40 Contacts Straight Type Profile : 4.4mm


    Specification:

    • Current Rating: 1Amp
    • Insulator Resistance: 5000 Megohms min
    • Contact Resistance: 20 Milliohms Max.
    • Dielectric Withstanding: AC 500V
    • Operating Temperature: -40℃~+105℃
    • Max Processing Temp: 230℃ For 30~60 Seconds (260℃ For 10 Seconds)
    • Contact Material: Phosphor Bronze
    • Insulator Material: Polyester, UL 94V-0
    • Standard: Nylon-6T
    • Contact Plated: Full Gold, Full Tin, Selective Plated

    More Specification (PDF)

Order / Inquiry Information

Please select Items below and click See Catelog for Inquiry.
Series Number F202
Row Type Single Row
No. of Contact
Terminal Type Straight Type
Contact Plated
Tail Type
