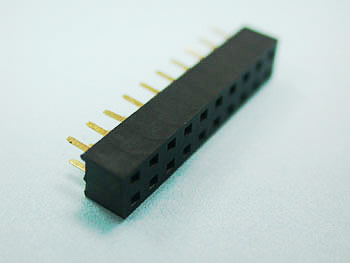

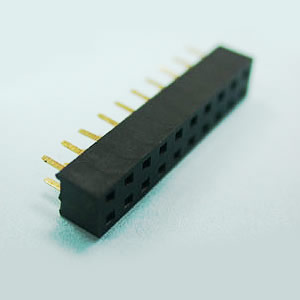

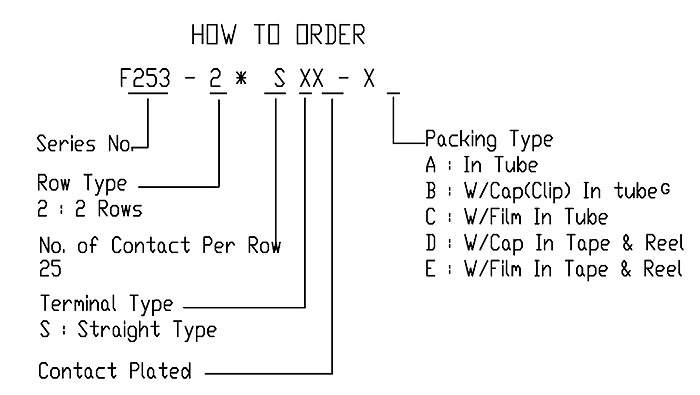

Products Female Header 2.0mm F253 Female Header P2.0mm Specification: Current Rating: 1Amp Insulator Resistance: 5000 Megohms min Contact Resistance: 20 Milliohms Max. Dielectric Withstanding: AC 500V Operating Temperature: -40℃~+105℃ Max Processing Temp: 230℃ For 30~60 Seconds (260℃ For 10 Seconds) Contact Material: Phosphor Bronze Insulator Material: Polyester, UL 94V-0 Standard: Nylon-6T & L.C.P. Contact Plated: Full Gold, Full Tin, Selective Plated More Specification (PDF) Order / Inquiry Information Please select Items below and click See Catelog for Inquiry. Series Number F253 Row Type 2 Rows No. of Contact Per Row 25 Terminal Type Straight Type Contact Plated Gold Flash, Tin 100u" Gold 3u", Tin 100u" Gold 5u", Tin 100u" Gold 10u", Tin 100u" Gold 15u", Tin 100u" Gold 20u", Tin 100u" Gold 30u", Tin 100u" Packing Type In Tube W/Cap (clip) In Tube W/Film in Tube W/Cap in Tape & Reel W/Film in Tape & Reel See Catalog Please write down your comment on this product, and click Add to Inquiry List for Inquiry Add to Inquiry List Review Inquiry List Back
