• 0.079”(2.0mm) Female Header
    • Quad Row 12 to 120 Contacts
    • Straight Type Profile : 9.35mm


    Specification:

    • Current Rating : 1Amp
    • Insulator Resistance : 1000 Megohms min.
    • Contact Resistance : 20 Milliohms Max.
    • Dielectric Withstanding : AC 500V
    • Operating Temperature : -40°C ~ +105°C
    • Max Processing Temp : 230°C For 30~60 Seconds  (260C For 10 Seconds)
    • Contact Material : Phosphor Bronze
    • Insulator Material : Polyester, UL 94V-0
    • Standard : Nylon-6T
    • Contact Plated : Full Gold, Full Tin, Selective Plated
    • Standard : Gold Flash all Over Nickel

    PDF

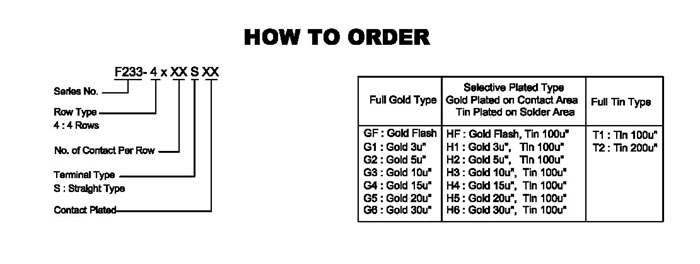

Order / Inquiry Information

Please select Items below and click See Catelog for Inquiry.
Series No. F223
Row Type 4: 4 Rows
No. of Contact Per Row
Terminal Type S: Straight Type
Contact Plated
