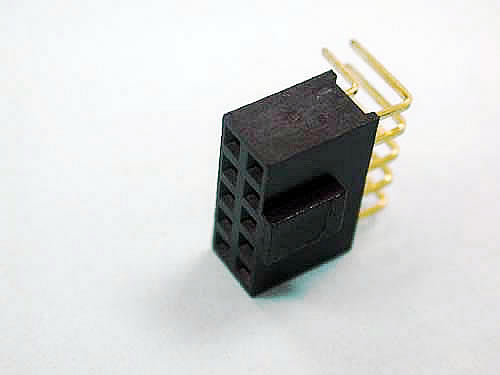

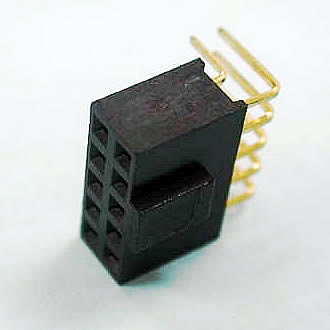

F201A Straight And Right Angle Type

• 0.1" (2.54mm) Female Header
• Dual Row 06 to 80 Contacts Straight And Right Angle Type Profile: 8.5mm


Specification:

• Current Rating: 3Amp
• Insulator Resistance: 5000 Megohms min
• Contact Resistance: 20 Milliohms Max.
• Dielectric Withstanding: AC 500V
• Operating Temperature: -40℃~+105℃
• Contact Material: Phosphor Brass
• Insulator Material: Polyester, UL 94V-0
• Standard: P.B.T & Nylon-6T
• Contact Plated: Full Gold, Full Tin, Selective Plated
• Standard Gold Flash all Over Nickel
