• 0.1”(2.54mm) Female Header
    • Single Row 02 to 40 Contacts
    • Straight Type Profile: 8.5mm


    Specification:

    • Current Rating : 3Amp
    • Insulator Resistance : 1000 Megohms min.
    • Contact Resistance : 20 Milliohms Max.
    • Dielectric Withstanding : AC 500V
    • Operating Temperature : -40°C ~ +105°C
    • Contact Material : Phosphor Bronze
    • Insulator Material : Polyester, UL 94V-0
    • Standard : P.B.T
    • Contact Plated : Full Gold , Full Tin, Selective Plated
    • Standard : Gold Flash all Over Nickel

    PDF

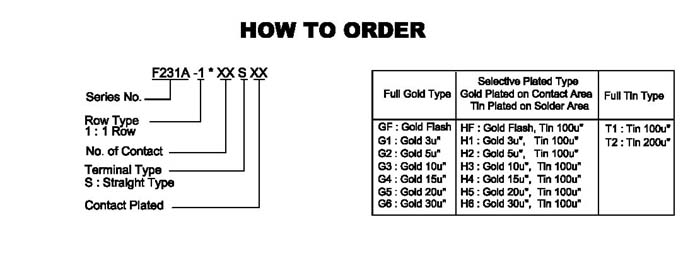

Order / Inquiry Information

Please select Items below and click See Catelog for Inquiry.
Series No. F231A
Row Type 1: 1 Row
No. of Contact
Terminal Type S: Straight Type
Contact Plated
