F228A Single Row 20 Contacts; Dual Row 40 & 64 Contacts Straight Type

• 0.1”(2.54mm) Female Header
• Single Row 20 Contacts; Dual Row 40 & 64 Contacts
• Straight Type Profile : 11.0mm


Specification:

• Current Rating : 3Amp
• Insulator Resistance : 1000 Megohms min.
• Contact Resistance : 20 Milliohms Max.
• Dielectric Withstanding : AC 500V
• Operating Temperature : -40°C ~ +105°C
• Max Processing Temp : 230°C For 30~60 Seconds (260°C For 10 Seconds)
• Contact Material : Phosphor Bronze
• Insulator Material : Polyester, UL 94V-0
• Standard : Nylon-6T

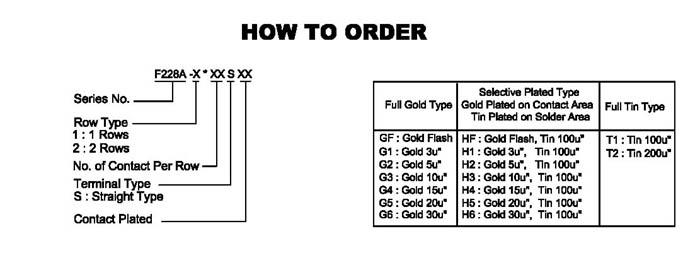

• Contact Plated : Full Gold, Full Tin, Selective Plated.
• Standard : Gold Flash all Over Nickel.
