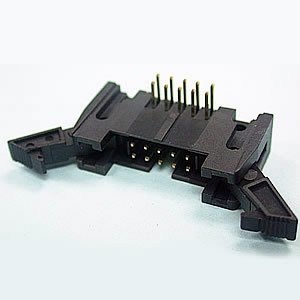

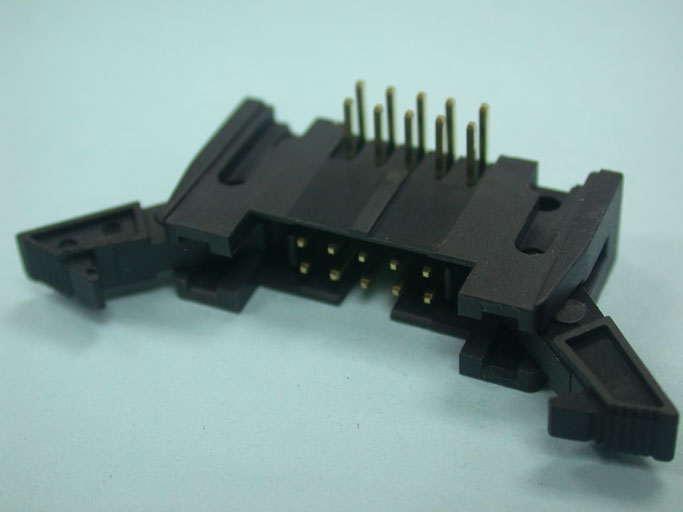

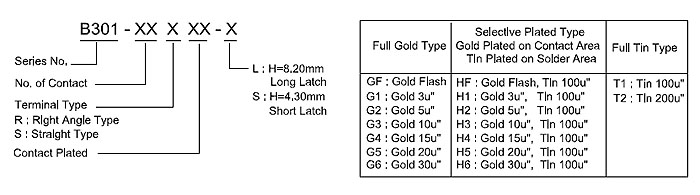

Products Box Header 2.54mm B301 Dual Row 10 to 64 Contacts Straight And Right Angle Type 0.1"(2.54mm)Shrouded Header Dual Row 10 to 64 Contacts Straight And Right Angle Type Specification: Current Rating: 3 Amp Insulator Resistance: 5000 Megohms min Contact Resistance: 20 Milliohms Max. Dielectric Withstanding: AC 500V Operating Temperature: -40℃~+105℃ Contact Material: Phosphor Bronze or Brass Insulator Material: Polyester, UL 94V-0 Standard: P.B.T Contact Plated: Full Gold, Full Tin, Selective Plated Standard Gold Flash all Over Nickel More Specification (PDF) Order / Inquiry Information Please select Items below and click See Catelog for Inquiry. Series Number B301 No. of Contact 10 12 14 16 18 20 22 24 26 28 30 32 34 36 38 40 42 44 46 48 50 52 54 56 58 60 62 64 Terminal Type Right Angle Type Straight Type Contact Plated GF: Gold Flash G1: Gold 3u" G2: Gold 5u" G3: Gold 10u" G4: Gold 15u" G5: Gold 20u" G6: Gold 30u" HF: Gold Flash, Tin 100u" H1: Gold 3u", Tin 100u" H2: Gold 5u", Tin 100u" H3: Gold 10u", Tin 100u" H4: Gold 15u", Tin 100u" H5: Gold 20u", Tin 100u" H6: Gold 30u", Tin 100u" T1: Tin 100u" T2: Tin 200u" Latch H=8.20mm Long Latch H=4.30mm Short Latch See Catalog Please write down your comment on this product, and click Add to Inquiry List for Inquiry Add to Inquiry List Review Inquiry List Back
