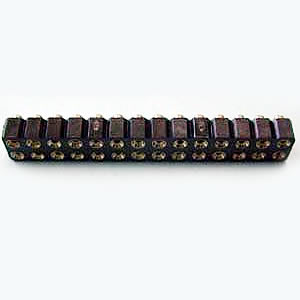

• SE-Dulbe Row IC Sockets 4.2mm
    • Technicat Data


    Material:

    • Pin (Outer Sieeve): Brass Machined CUZN38PB2
    • Clip (Contact 4 Finger): Berylltum Copper Heat Treated
    • Plating (Outer Sieeve): Tin Plated:2um/80u" Nickel. 5u" /200u" Tin
    • Gold Plated:2um/80u" Nickel. Full Gold
    • Plating (Contact): 2um/80u" Nickel Gold Or Tin Placking
    • Insulator Body (Housing): PPS(UL94V-0)


    Electrical:

    • Current Rating: 3 Amps/Contact Max
    • Contact Resistance: <4MΩ/Contact
    • Insulator Tesistance: >1000MΩ AT V=100V
    • Operating: 60 VAC/DC


    Mechanical:

    • Operating Temperature: Gold Plated:-55℃~+125℃
    • (Continuous) Tin Plated:-40℃~+105℃
    • Average Insertion Forre : <250g With Steel Pin Of ø0.43mm/0.017
    • Average Withdrawat: >50g Force With Steel Pin Of ø0.43mm/0.017
    • Mechanical Life: Min200
    • Soldering Temperture: +260℃ 10s Max

    More Specification (PDF)

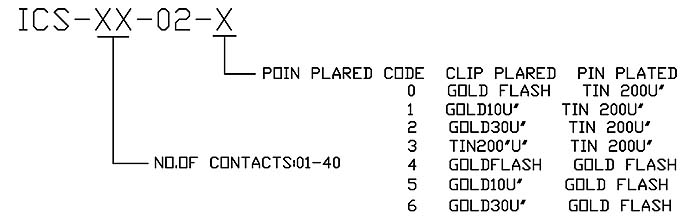

Order / Inquiry Information

Please select Items below and click See Catelog for Inquiry.
No. Of Contacts
Poin Plared Code
See Catalog
