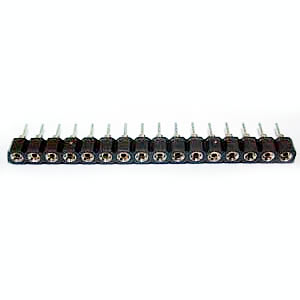

ICS Single Row Strip Socket Pitch 2.54mm

• Single Row Strip Socket Pitch 2.54mm
• Technicat Data


Material:

• Pin (Outer Sieeve): Brass Machined CUZN38PB2
• Clip (Contact 4 Finger): Berylltum Copper Heat Treated

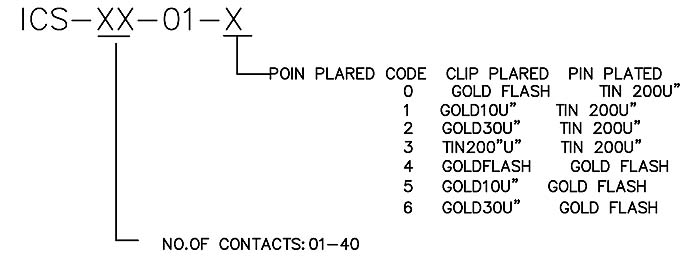

• Plating (Outer Sieeve): Tin Plated:2um/80u" Nickel. 5u" /200u" Tin
• Gold Plated:2um/80u" Nickel. Full Gold
• Plating (Contact): 2um/80u" Nickel Gold Or Tin Placking
• Insulator Body (Housing): PPS(UL94V-0)


Electrical:

• Current Rating: 3 Amps/Contact Max
• Contact Resistance: <4MΩ/Contact
• Insulator Tesistance: >1000MΩ AT V=100V
• Operating: 60 VAC/DC


Mechanical:

• Operating Temperature: Gold Plated:-55℃~+125℃
• (Continuous) Tin Plated:-40℃~+105℃
• Average Insertion Forre : <250g With Steel Pin Of ø0.43mm/0.017
• Average Withdrawat: >50g Force With Steel Pin Of ø0.43mm/0.017
• Mechanical Life: Min200
• Soldering Temperture: +260℃ 10s Max
