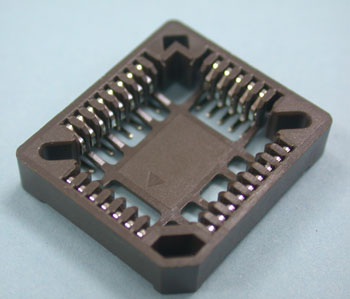

  • P401A W/Locating Peg SMT Type

    P401A W/Locating Peg SMT Type



      PLCC Series
    W/Locating Peg SMT Type

      Specifications
      Current Rating: 1.0Amp
      Voltage Rating: 100V AC/DS
      Contact Resistance: 20 Milliohms Max.
      Insulator Resistance: 1000 Megohms min
      Withstanding Voltage: 500V AC/Minute
      Operating Temperature Range: -40℃~+105℃


      Material And Finish
      Insulator : PPS or PBT (UL 94V-0)
      Contact : Phosphor Bronze
      Contact : Full Tin Plated

    More Specification (PDF)

P401A W/Locating Peg SMT Type

Order / Inquiry Information

Please select Items below and click See Catelog for Inquiry.
Series No. P401A
No. of Positions
Insulator Material
Contact Plated Full Tin Plated
