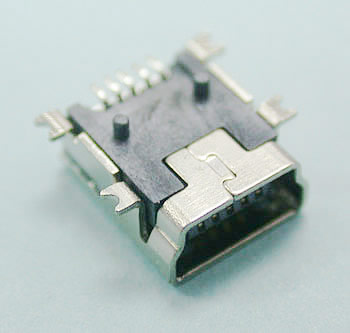

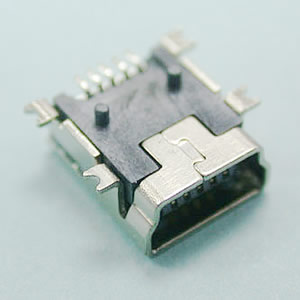

• Mini USB Series
    • 5 Contacts AB & B Female SMD Type


    Specifications:

    • Current Rating: 1.5Amp
    • Voltage Rating: 250V AC/DC
    • Contact Resistance: 20 Milliohms Max.
    • Insulator Resistance: 1000 Megohms min
    • Withstanding Voltage: 500V AC/Minute
    • Operating Temperature Range: -40℃~+85℃


    Material And Finish:

    • Insulator : Thermoplastic Nylon 6T (UL 94V-0)
    • Contact : Copper Alloy
    • Contact Plated : Selective Gold Plated (Standard)
    • Shell: Copper Alloy With Nickel Plated

    More Specification (PDF)

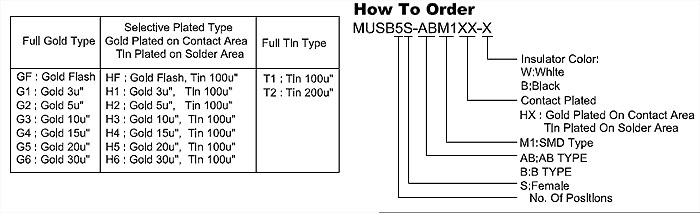

Order / Inquiry Information

Please select Items below and click See Catelog for Inquiry.
Series No. MUSB5S
Type
Contact Plated
Insulator Color
See Catalog
