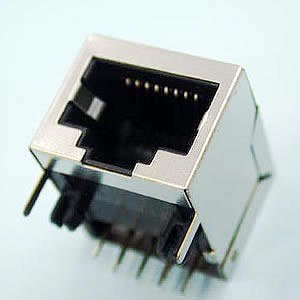

MJCR MJCR-001M108CGF-B

Specification:

• Current Rating : 1.5 Amp
• Insulator Resistance : 500 Megohms min.
• Voltage Rating : 125V AC/DC
• Contact Resistance : 20 Milliohms Max.
• Dielectric Withstanding : AC 1000 V
• Operating Temperature : -40%%dC ~ +80%%dC
• Contact Material : 0.35*0.45mm Dia. Phosphor Bronze
• Insulator Material : Polyester, UL 94V-0, Standard :PBT
• Contact Plated : Gold in Contact Area,Tin in, Tail Area Both Over Nickel
