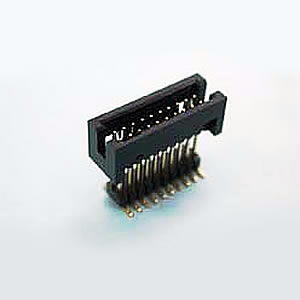

B304B1 Dual Row 10 to 100 Contacts Four Wall Shrouded SMT Type

• 0.05"X0.05"(1.27X1.27mm) Box Header
• Dual Row 10 to 100 Contacts Four Wall Shrouded
• SMT Type Profile : 5.7mm


Specification:

• Current Rating: 1 Amp
• Insulator Resistance: 1000 M ohm min.
• Contact Resistance: 20m ohm Max.
• Dielectric Withstanding: 500 V AC/Min.
• Operating Temperature: -40℃ ~ +105℃
• Max Processing Temp : 230℃ For 30~60 Seconds (260℃ For 10 Seconds)
• Contact Material: Brass
• Insulator Material: Polyester, UL 94V-0
• Standard : NY-6T
• Contact Plated: Full Gold, Full Tin,Selective Plated
• Standard: Gold Flash all Over Nickel
