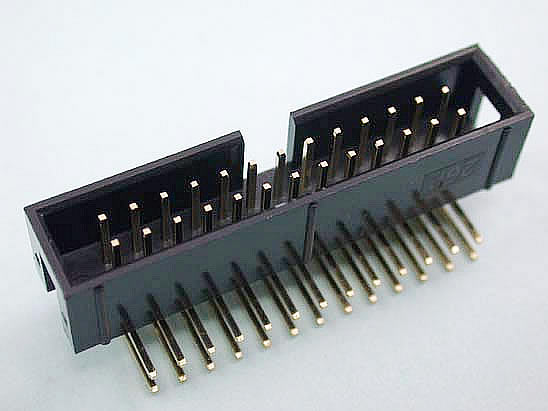

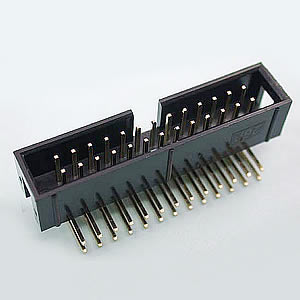

B302 Dual Row 08 to 64 Contacts Straight And Right Angle Type

• 0.10"(2.54mm) Box Header
• Dual Row 08 to 64 Contacts
• Straight And Right Angle Type Profile : 8.8mm


Specification:

• Current Rating: 3 Amp
• Insulator Resistance: 1000 M ohm min.
• Contact Resistance: 20m ohm Max.
• Dielectric Withstanding: AC 500V
• Operating Temperature: -40℃ ~ +105℃
• Max Processing Temp : 230℃ For 30~60 Seconds (260℃ For 10 Seconds)
• Contact Material: Brass
• Insulator Material: Polyester, UL 94V-0
• Standard : NY-6T
• Contact Plated: Full Gold, Full Tin,Selective Plated
• Standard: Gold Flash all Over Nickel
