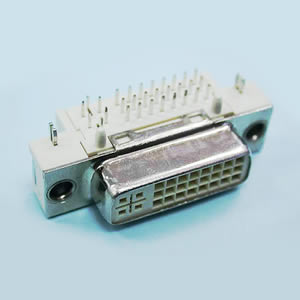

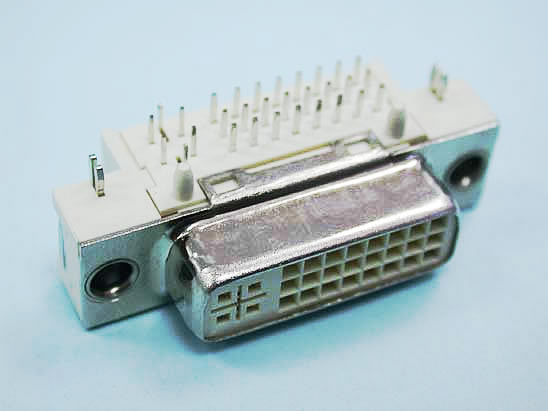

DVI29S DVI (Digital Visual Interface)

• DVI (Digital Visual Interface)
• 24+5 Contacts Right Angle Type


Specifications:

• Current Rating: 1.0 Amp
• Voltage Rating: 250V AC/DC
• Contact resistance: 20m Ohm Max
• Insulator resistance: 1,000M ohm min.
• Withstanding Voltage: 500V AC/Minute
• Operating Temperature Range: -40℃+85℃
• Max Processing Temp: 230℃ For 30~60 Seconds
• 260℃ for10 seconds


Material And Finish:

• Insulator: Polyester(UL 94V-0)
• Standard : Nylon 6T
• Contact: Phosphor Bronze
• Contact Plated: Gold plated(standard)
• Sheel: Copper Alloy With Nicket Plated
