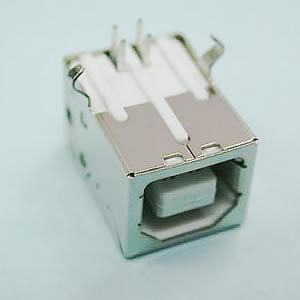

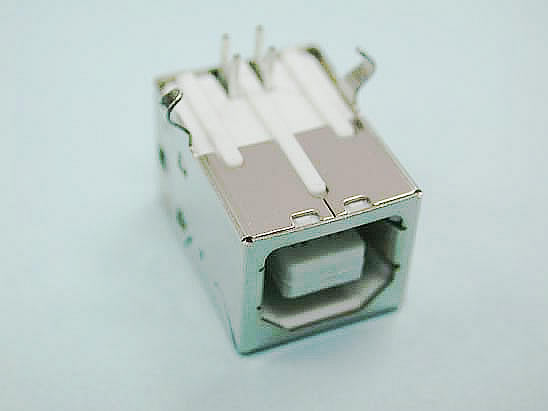

USB4S USB SERIES B TYPE FEMALE STRAIGHT&R/A TYPE

• USB SERIES
• B TYPE FEMALE STRAIGHT&R/A TYPE


Specifications:

• Current Rating: 1.5 Amp
• Voltage Rating: 250V AC/DC
• Contact resistance: 20m Ohm Max
• Insulator resistance: 1000M ohm min.
• Withstanding Voltage: 500V AC/Minute
• Operating Temperature Range: -40℃+85℃


Material And Finish:

• Insulator Material: Thermoplastic PBT(UL 94V-0)
• Contact Material: Copper Alloy
• Contact Plated: Selective Gold plated(standard)
• Shell: Copper Alloy With Nickel Plated
