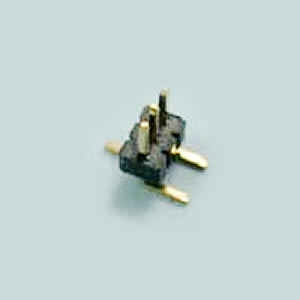

P1032 Single Row 02 to 50 Contacts SMT Type

• 0.05"(1.27mm) Pin Header
• Single Row 02 to 50 Contacts SMT Type ,Profile : 1.7mm


Specification:

• Current Rating: 1 Amp
• Insulator Resistance: 1000 M ohm min.
• Contact Resistance: 20m ohm Max.
• Dielectric Withstanding: 500 V AC/min.
• Operating Temperature: -40℃ ~ +105℃
• Max Processing Temp: 230℃ For 30~60 Seconds (260℃ For 10 Seconds)
• Contact Material: Brass
• Insulator Material: Polyester, UL 94V-0
• Standard : Nylon-6T
• Contact Plated: Full Gold, Full Tin, Selective Plated
