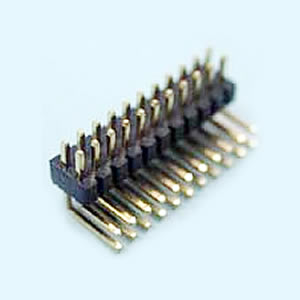

P1038 Dual Row 06 to 100 Contacts Straight And Right Angle Type

• 0.05” × 0.05”(1.27 × 1.27mm) Pin Header
• Dual Row 06 to 100 Contacts
• Straight And Right Angle Type Profile: 1.5mm


Specification:

• Current Rating : 1Amp
• Insulator Resistance : 1000 Megohms min.
• Contact Resistance : 20 Milliohms Max.
• Dielectric Withstanding : AC 500V
• Operating Temperature : -40°C ~ +105°C
• Max Processing Temp : 230°C For 30~60 Seconds (260°C For 10 Seconds)
• Contact Material : Brass
• Insulator Material : Polyester, UL 94V-0
• Standard : Nylon-6T
• Contact Plated : Full Gold, Full Tin, Selective Plated
