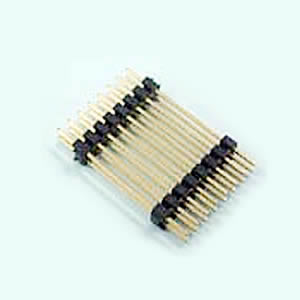

P104 Dual Row 04 to 80 Contacts Straight And Right Angle Type

• 0.079" (2.0mm) Pin Header
• Dual Row 04 to 80 Contacts Straight And Right Angle Type


Specification:

• Current Rating: 1.0 Amp
• Insulator Resistance: 1000 M ohm min.
• Contact Resistance: 20m ohm Max.
• Dielectric Withstanding: 500 V AC/Min.
• Operating Temperature: -40℃ ~ +105℃
• Max Processing Temp.: 230℃ For 30~60 Seconds (260℃ For 10 Seconds)
• Contact Material: Brass
• Insulator Material: Polyester, UL 94V-0
• Standard : P.B.T or Nylon-6T
• Contact Plated: Full Gold, Full Tin,Selective Plated
