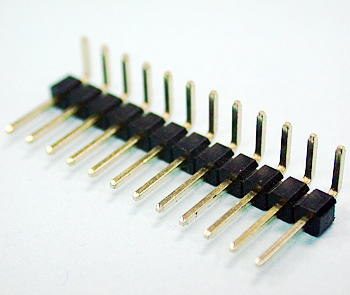

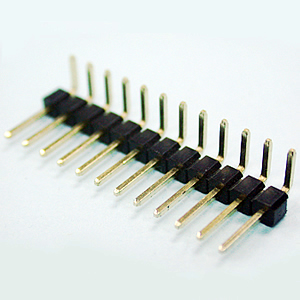

• 0.1"X0.1" (2.54mm) Pin Header
    • Single Row 02 to 40 Contacts Straight And Right Angle Type Profile: 2.54mm


    Specification:

    • Current Rating: 3Amp
    • Insulator Resistance: 5000 Megohms min
    • Contact Resistance: 20 Milliohms Max.
    • Dielectric Withstanding: AC 500V
    • Operating Temperature: -40℃~+105℃
    • Contact Material: Brass
    • Insulator Material: Polyester, UL 94V-0
    • Standard: P.B.T
    • Contact Plated: Full Gold, Full Tin, Selective Plated

    More Specification(PDF)

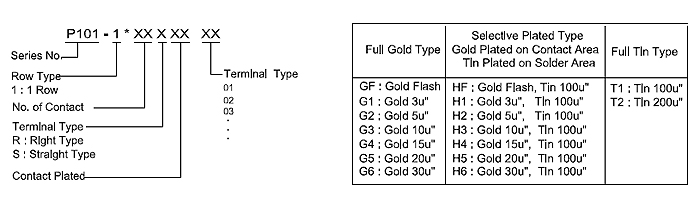

Order / Inquiry Information

Please select Items below and click See Catelog for Inquiry.
Series No. P101
Row Type 1 Row
No. of Cntact
Terminal Type
Contact Plated
Terminal Type A=2.8mm B=4.0mm
