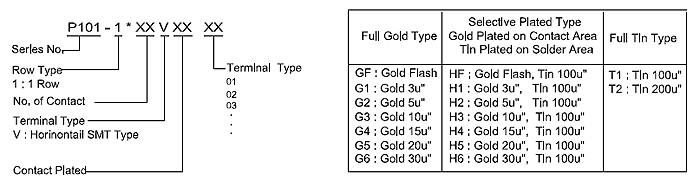

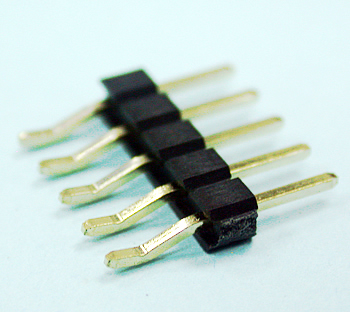

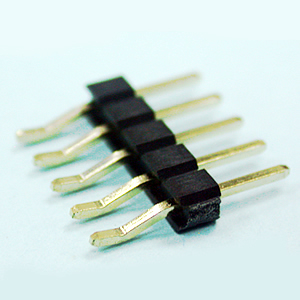

P101 Single Row Horizonal SMT Type
- 0.1"X0.1" (2.54mm) Pin Header
- Single Row 02 to 40 Contacts Horizonal SMT Type
Specification:
- Current Rating: 3Amp
- Insulator Resistance: 5000 Megohms min
- Contact Resistance: 20 Milliohms Max.
- Dielectric Withstanding: AC 500V
- Operating Temperature: -40℃~+105℃
- Max Processing Temp: 230℃ For 30~60 Seconds (260℃ For 10 Seconds)
- Contact Material: Brass
- Insulator Material: Polyester, UL 94V-0
- Standard: Nylon-6T
- Contact Plated: Full Gold, Full Tin, Selective Plated
