  • P104 Dual Row 04 to 80 Contacts straight And Right Angle Type

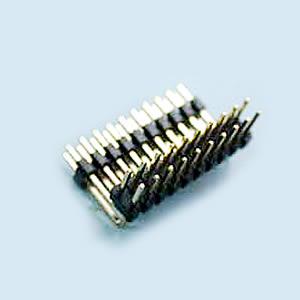

    P104 Dual Row 04 to 80 Contacts straight And Right Angle Type

    • 0.1" (2.54mm) Pin Header
    • Dual Row 04 to 80 Contacts straight And Right Angle Type


    Specification:

    • Current Rating: 3.0 Amp
    • Insulator Resistance: 1000 Megohms min.
    • Contact Resistance: 20 Milliohms Max.
    • Dielectric Withstanding: AC 500V
    • Operating Temperature: -40℃ ~ +105℃
    • Contact Material: Brass
    • Insulator Material: Polyester, UL 94V-0
    • Standard : P.B.T&Nylon-6T
    • Contact Plated: Full Gold, Full Tin,Selective Plated

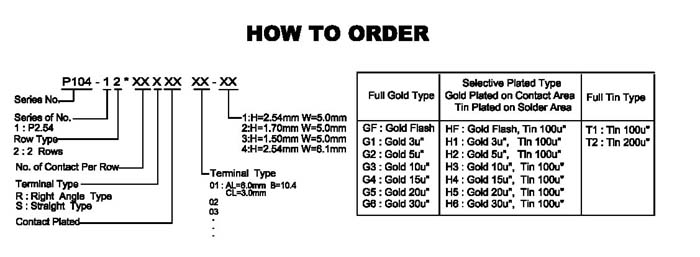

    P104-12xXXXXX-XX-X

P104 Dual Row 04 to 80 Contacts straight And Right Angle Type

Order / Inquiry Information

Please select Items below and click See Catelog for Inquiry.
Series No. P104
Series of No. 1: P2.54
Row Type 2:2 Rows
No. of Contact Per Row
Terminal Type
Contact Plated
Terminal Type
