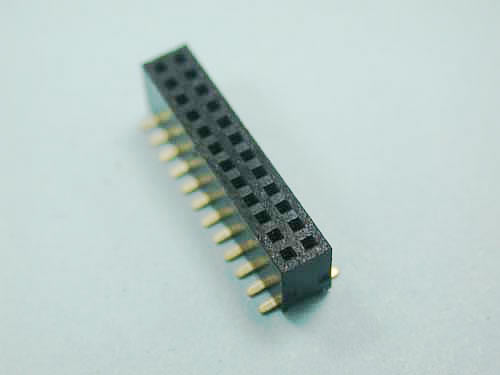

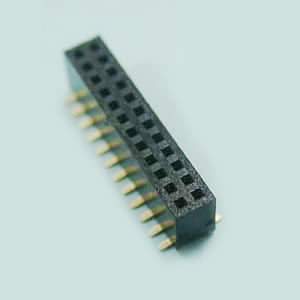

F226 Dual Row 04to100 Contacts SMT Type

• 0.05”(1.27mm)Female Header
• Dual Row 04 to 100 Contacts
• SMT Type Profile : 4.3mm


Specification:

• Current Rating : 1Amp
• Insulator Resistance : 1000 Megohms min.
• Contact Resistance : 20 Milliohms Max.
• Dielectric Withstanding : -40°C ~ +105°C
• Max Processing Temp : 230°C For 30~60 Seconds (260°C For 10 Seconds)
• Contact Material : Phosphor Bronze
• Insulator Material : Polyester, UL 94V-0
• Standard : Nylon-6T or L.C.P.
• Contact Plated : Full Gold, Full Tin
• Standard : Gold Flash all Over Nickel
