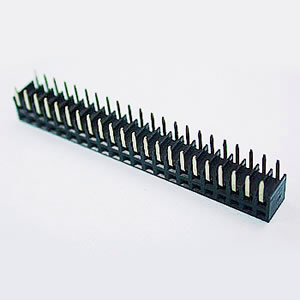

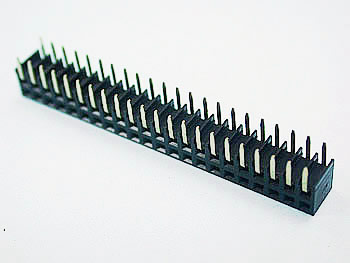

F223C Dual Row 04 to 80 Contacts Side Entry Straight Type

• 0.079"(2.0mm)Female Header
• Dual Row 04 to 80 Contacts Side Entry StraightType Profile : 4.9mm


Specification:

• Current Rating: 1Amp
• Insulator Resistance: 5000 Megohms min
• Contact Resistance: 20 Milliohms Max.
• Dielectric Withstanding: AC 500V
• Operating Temperature: -40℃~+105℃
• Max Processing Temp: 230℃ For 30~60 Seconds (260℃ For 10 Seconds)
• Contact Material: Phosphor Bronze
• Insulator Material: Polyester, UL 94V-0
• Standard: Nylon-6T
• Contact Plated: Full Gold, Full Tin, Selective Plated
• Standard Gold Flash all Over Nickel
