  • F201 Dual Row 04 to 80 Contacts Straight And Right Angle Type

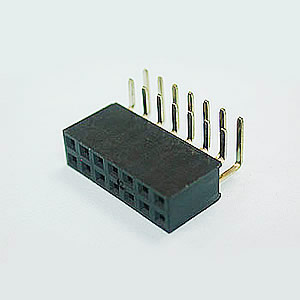

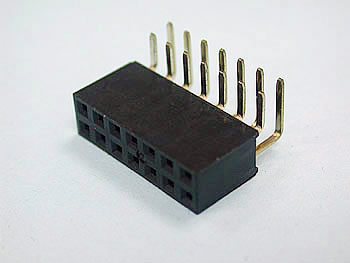

    F201 Dual Row 04 to 80 Contacts Straight And Right Angle Type

    • 0.1"(2.54mm)Female Header
    • Dual Row 04 to 80 Contacts Straight And Right Angle Type Profile : 8.5mm


    Specification:

    • Current Rating: 3Amp
    • Insulator Resistance: 5000 Megohms min
    • Contact Resistance: 20 Milliohms Max.
    • Dielectric Withstanding: AC 500V
    • Operating Temperature: -40℃~+105℃
    • Contact Material: Brass
    • Insulator Material: Polyester, UL 94V-0
    • Standard: Nylon-6T & P.B.T
    • Contact Plated: Full Gold, Full Tin, Selective Plated
    • Standard Gold Flash all Over Nickel

    More Specification (PDF)

F201 Dual Row 04 to 80 Contacts Straight And Right Angle Type

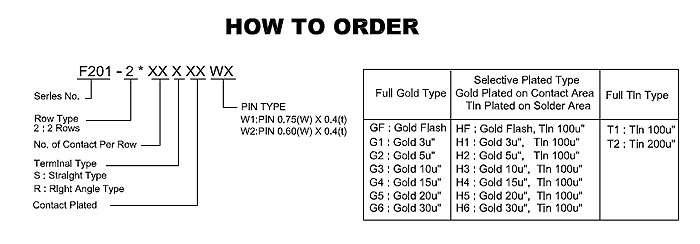

Order / Inquiry Information

Please select Items below and click See Catelog for Inquiry.
Series Number F201
Row Type 2 Rows
No. of Contact
Terminal Type Right Angle Type
Contact Plated
Pin Type
See Catalog
Add to Inquiry List
Review Inquiry List
