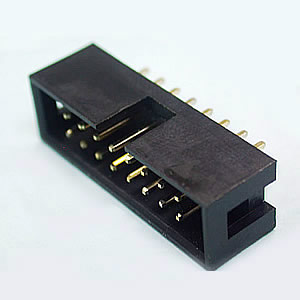

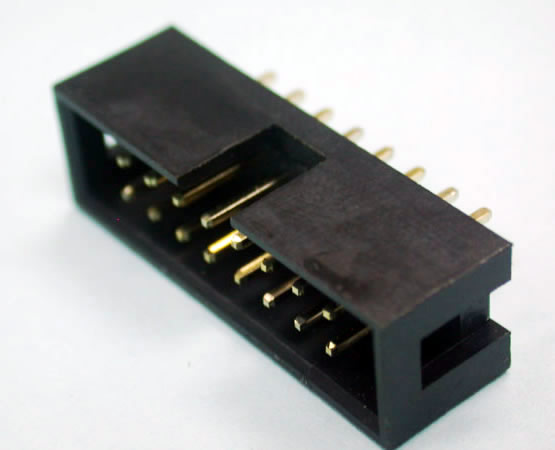

B302 Dual Row 08 to 64 Contacts Straight And Right Angle Type

• 0.10"(2.54mm)Box Header
• Dual Row 08 to 64 Contacts Straight And Right Angle Type Profile :8.8mm


Specification:

• Current Rating: 3 Amp
• Insulator Resistance: 5000 Megohms min
• Contact Resistance: 20 Milliohms Max.
• Dielectric Withstanding: AC 500V
• Operating Temperature: -40℃~+105℃
• Contact Material: Phosphor Bronze or Brass
• Insulator Material: Polyester, UL 94V-0
• Standard : P.B.T

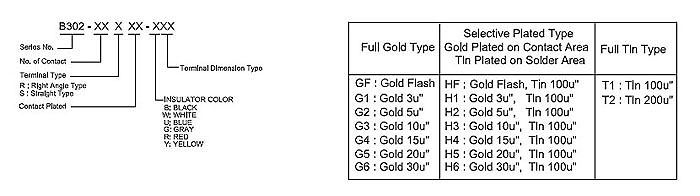

• Contact Plated: Full Gold, Full Tin, Selective Plated
• Standard Gold Flash all Over Nickel
