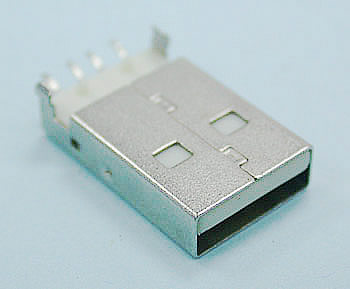

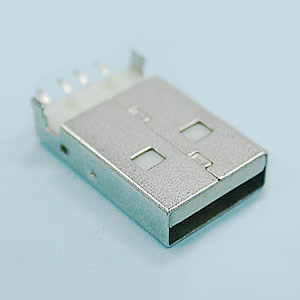

USB4P-AM1 A Type Male SMD Type
- USB Series
- A Type Male SMD Type
Specifications:
- Current Rating: 1.5Amp
- Voltage Rating: 250V AC/DC
- Contact Resistance: 20 Milliohms Max.
- Insulator Resistance: 1000 Megohms min
- Withstanding Voltage: 500V AC/Minute
- Operating Temperature Range: -40℃~+85℃
Material And Finish:
- Insulator : Thermoplastic Nylon 6T (UL 94V-0)
- Contact : Copper Alloy
- Contact Plated : Selective Gold Plated (Standard)
- Shell: Copper Alloy With Nickel Plated
